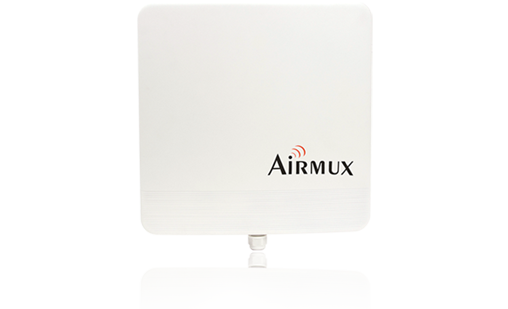

RAD Airmux-400E/ODU/F50W/INT
| Configuration | |
|---|---|
| Architecture | Outdoor Unit with an integrated antenna |
| PoE to ODU Interface E | Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000/2500BaseT |
| Data Interfaces | 100/1000/2500Mbps Full Duplex RJ45 PoE, 1000Mbps Full Duplex SFP |
| Radio | |
| Max Capacity | 2.5 Gbps net aggregate throughput |
| Channel Bandwidth | Configurable: 20, 40, 80, 160 MHz |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM/4096QAM) |
| Adaptive Modulation & Coding | Supported |
| DFS | Supported (ETSI) |
| MIMO and Diversity | Supported |
| Spectrum Scan | Supported (Offline) |
| Max Tx Power | 25 dBm per chain |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 256 |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| Networking | |
| Layer 2 | HUB Mode |
| QoS | Packet classification to 8 priority queues according to 802.1P or Diffserv |
| VLAN Support | Supported |
| Ethernet Ring Protection | Not supported |
| TDD Intra Site Synchronization | Supported via built-in GPS receiver |
| ODU Management | IPv4/IPv6 dual-stack; SNMPv1, SNMPv3; HTTP/HTTPS using web browser |
| RADIUS User authentication | Supported |
| Monitored Hot Standby | Not supported |
| Supported Bands | |
| Band | CBW 20MHz [GHz] | CBW 40MHz [GHz] | CBW 80MHz [GHz] | CBW 160MHz [GHz] | Radio Compliance |
|---|---|---|---|---|---|
| 4.9 GHz WorldWide (default) | 4.900-6.060 | 4.900-6.060 | 4.900-6.060 | 4.900-6.060 | Universal |
| 4.9 GHz FCC | 4.940-4.990 | 4.940-4.990 | – | – | FCC 47CFR Part 90 Subpart Y; ISED RSS-111 |
| 4.9 GHz IC | 4.940-4.990 | – | – | – | ISED RSS-111 |
| 5.1 GHz WPC | 5.150-5.875 | 5.150-5.875 | 5.150-5.875 | 5.150-5.875 | WPC (India) G.S.R_1048(E) dated 22 October 2018 |
| 5.1 GHz TH | 5.150-5.350 | 5.150-5.350 | 5.150-5.350 | 5.150-5.350 | N/A |
| 5.1 GHz FCC | 5.170-5.250 | 5.170-5.250 | 5.170-5.250 | – | FCC 47CFR Part 15.407 |
| 5.4 GHz ETSI | 5.470-5.710 | 5.490-5.690 | 5.490-5.650 | 5.430-5.765 | ETSI EN 301 893 |
| 5.4 GHz TH | 5.470-5.725 | 5.470-5.725 | 5.470-5.725 | 5.470-5.725 | N/A |
| 5.7 GHz FCC | 5.730-5.845 | 5.730-5.845 | 5.730-5.845 | – | FCC 47CFR Part 15.407; ISED RSS-247 |
| 5.7 GHz IC | 5.730-5.845 | 5.730-5.845 | 5.730-5.845 | – | FCC 47CFR Part 15.407; ISED RSS-247 |
| 5.8 GHz MII | 5.725-5.850 | 5.725-5.850 | 5.725-5.850 | – | CMIIT RTA |
| 5.7 GHz TH | 5.725-5.850 | 5.725-5.850 | 5.725-5.850 | – | N/A |
| Mechanical | |
|---|---|
| ODU Dimensions | 37.3(w) x 37.0(h) x 9.8(d) cm |
| ODU Weight | 2.6 kg / 5.73 lbs |
| Mounting Kit | Included |
| Power | |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | <24W |
| Network Device | 802.3at Class 4 (30W) |
| AC POE | RD-9921-400x |
| DC POE | RD-9921-2069 |
| Package Content | |
| Package | Radio unit with integrated antenna, pole/wall mounting kit, IP67 glands for POE and SFP ports |
| Environmental | |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m) |
| MTBF | 1,280,000 hours (Telcordia SR332 @25°C) |
| Wind Resistance operational | 180Km/h |
| Maritime | IEC-60068-2-11 Test Ka: Salt mist. |
| Safety | |
| US/CAN (cTUVus) | UL 62368-1:2014, UL 60950-22:2017, CAN/CSA-C22.2 NO. 62368-1-14, CAN/CSA-C22.2 No. 60950-22:17 |
| EU/Intl | IEC 62368-1:2014, EN 62368-1:2014/A11:2017, IEC 60950-22:2016, EN 60950-22:2017 |
| EMC | |
| FCC | 47 CFR, Part15, Subpart B, Class B |
| ETSI | EN 300 386, EN 301 489-1, EN 301 489-4 |
| Canada | CISPR 22-2010 Class B |
