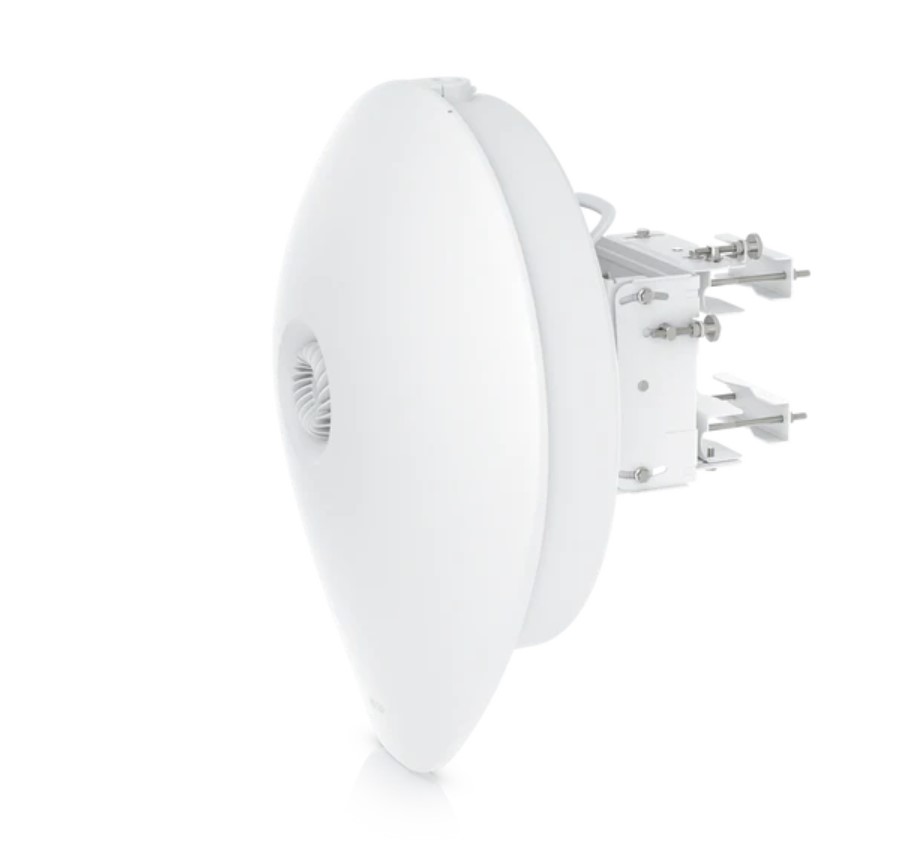

Ubiquiti AF60-XG AirFiber 60GHz 10Gbps Bridge SFP+

Ubiquiti AF60-XG AirFiber 60GHz 10Gbps Bridge SFP

UISP airFiber 60 XG 4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

The Ubiquiti airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The Ubiquiti airFiber AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.

airFiber 60 XG airFiber Features:

• Low-interference, 60 GHz spectrum
• High-gain dish antenna

• 5 GHz backup radio

• 4+ km link range

• Supports channel bonding to achieve up to a 6 Gbps throughput rate

• Terragraph-certified

• 10G SFP+ port

• Integrated GPS

Mechanical

• Dimensions 779 x 664 x 383 mm
• Weight Without mount: 8.6 kg
• With mount: 13 kg

• Enclosure materials UV stabilized polycarbonate, steel

• Mount material Galvanized steel

• Mount Precision Alignment Kit(included)

• Pole compatibility: Ø40-80 mm
• Wind loading 422 N at 200 km/h

Hardware

• Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz

• Memory 2 GB DDR4

• Networking interfaces (1) GbE RJ45 port

• (1) 1/10G SFP+ port

• Button Factory reset

• RF connections Internal

• Max. power consumption 31.2W

• Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 or 2-pairs (4, 5+; 7, 😎

• Power supply 48VDC, 0.65A Gigabit PoE adapter (included)

• Supported voltage range 48VDC ± 10%

• Operating temperature -40 to 55° C (-40 to 131° F)

• Operating humidity 5 to 95% noncondensing

• Certications FCC, IC, CE, terragraph

LEDS

• Power Flashing white: bootup in progress

• White: not connected to UISP™ console

• Blue: connected to UISP console

• Ethernet Flashing blue: ethernet activity

• GPS Blue: receiving atleast(4) GPS satellite signals

• 60G Blue: active connection

• 5G Blue: active connection
